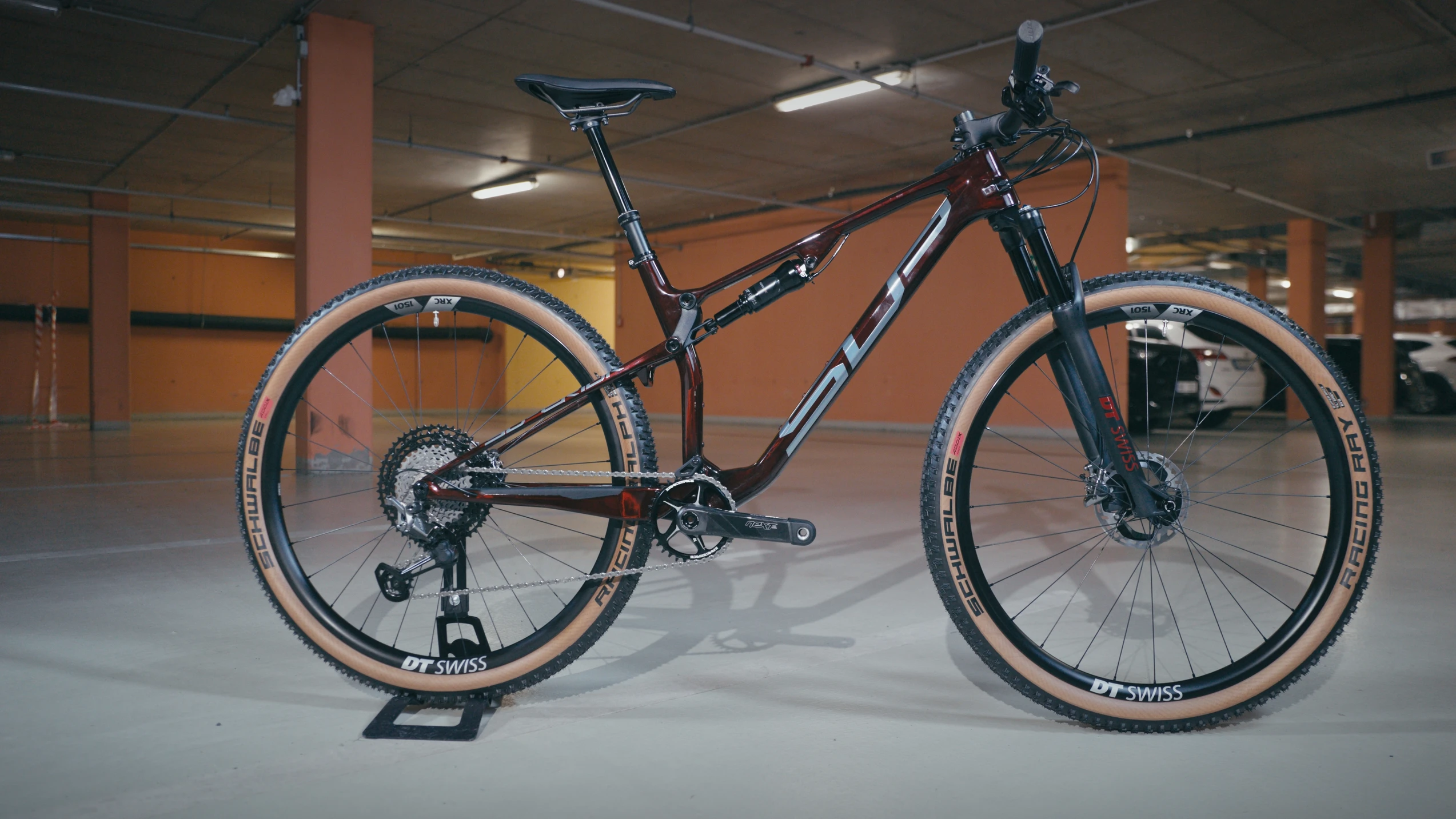

Specification: TEAM XF 29 Issue R

BASE INFO

WEIGHT10.90 kg

ISO and EN norm

LOAD CAPACITY120 KgISO normISO 4210-2 MTB bicyclesEN normEN17406 Condition 3 For rough Off-Road riding and jumps less than 60cm

FRAMESET

BOTTOM BRACKETRace Face BB92, PressFit, shell 41x92mmSUSPENSION FORKDT Swiss F232 ONE, Tapered, 15x110mm axle, 110mm travelREAR SHOCKDT Swiss R232 ONE, size 190x45mm, ODLFRAMESU-01, Carbon MTB Race Pro, Advanced Race Geometry, Travel 100 mm, Tapered Head Tube, BB92, 3D alloy one piece link, Carbon swingarm, SR dropout, Boost Thru Axle 12x148 mm, Inner cable routing, Dropped seat post readyHEADSETACROS AZX-220 R4, ZS44/28.6 - ZS56/40, BlockLock 150°REAR AXLESB01, TA12x171.5, M12xP1.5x15.5L, Black

DRIVETRAIN

SHIFTERS RIGHTSHIMANO XTR SL-M9100-IR, RAPIDFIRE Plus, 12-speedCASSETTESHIMANO XTR CS-M9101, 12-speed, 10-51TCHAINSHIMANO XT CN-M8100REAR DERAILLEURSHIMANO XTR RD-M9100, Shadow Plus DesignCRANKSETRace Face NEXT SL, 34T

BRAKING SYSTEM

ROTOR FRONTSHIMANO RT-MT900, 160mmBRAKE FRONTSHIMANO XTR M9100, hydraulic disc brakeBRAKE REARSHIMANO XTR M9100, hydraulic disc brakeROTOR REARSHIMANO RT-MT900, 160mm

WHEELS

WHEELSET FRONTDT Swiss XRC 1501 SPLINE®, Carbon, CL, 15x110mm, Tubeless ReadyWHEELSET REARDT Swiss XRC 1501 SPLINE®, Carbon, CL, 12x148mm, SH12, Tubeless ReadyTIRE FRONTSchwalbe Racing Ray Evo, TL-Easy, SuperRace, 29x2.25", ADDIX SpeedTIRE REARSchwalbe Racing Ralph Evo, TL-Easy, SuperRace, 29x2.25", ADDIX Speed

COCKPIT

HANDLEBARONE Race, Carbon, 31.8mmSTEMONE Race, Alloy, 31,8mm, -7°GRIPS LEFTONE Race, Lock-OnGRIPS RIGHTONE Race, Lock-On

PARTS

SADDLEFizi:k Terra Argo X3, KiumSEATPOST LEVERSHIMANO SL-MT500-L, Seat post leverSEATPOSTCrankbrothers Highline 11 dropper post, 30.9mmSEATPOST CLAMPONE CC-904A, 34.9mm, Full CNC mahined, Bla
